Y-Pipe Hanger

Suitable for a variety of applications that require bolting to brackets or fixtures.

• Can be used for horizontal and vertical suspensions
• Available for use with No. 1, No. 2 and No. 3 hangers, with up to 5:1 safety factor
• Supplied as a ready-to-use kit with Gripple wire rope and hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified
• Fire rated version available

For attachment to a variety of substrates using suitable fixings.

• Ideal for use in bracing applications
• Available in sizes No. 2 and No. 3, with up to 5:1 safety factor and 110 kg SWL
• Supplied as a ready-to-use kit with Gripple wire rope and hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified

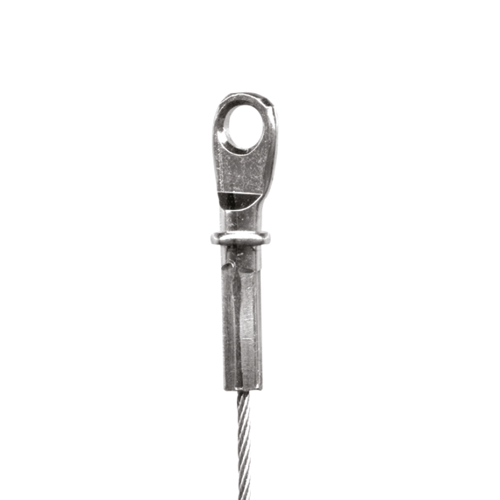

For fixing into concrete, steel or wood using gas or power actuated tools, or appropriate screws.

• Large version also available with 11.2mm hole
• Available with up to 90 kg SWL, with a 5:1 safety factor
• Comes as a ready-to-use kit with wire rope and Gripple fastener
• Also available in standard Eyelet and 45º Eyelet versions

For anchoring into concrete ceilings, metal decking and pressed metal.

• Supplied with Drop-in Anchors (as standard) or nuts as required
• M6, M8 and M10 versions available
• Available in sizes No. 1 - No. 4, with up to 5:1 safety factor
• Comes as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified
• Available in Stainless Steel (M8)
• Fire rated version available

Designed specifically for use with channel, to suspend all types of building services

• Pre-assembled and ready-to-insert
• Fits directly into both 41 x 41 and 41 x 21 channel profiles
• Ideal for common rail installations and multi-tier installations
• No additional components required
• Available for use with No. 2 and No. 3 hangers with up to 5:1 safety factor
• Comes as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified

For fastening through profile roof cladding, light fittings and other cavities.

• Ideal when used as a Y-Fit to suspend lighting
• Available for use with No. 1, No. 2 and No. 3 hangers with up to 5:1 safety factor
• Comes as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified
• Available in Stainless Steel

For fast quarter-turn attachment to Low Profile Bracket or Universal Brackets.

• Allows for suspension of services from pre-installed header rails, or to provide multi-tier suspension from Gripple Universal Brackets
• Fail safe clip to secure into bracket prevents unexpected movement
• Available for use with No. 1, No. 2 and No. 3 hangers
• Supplied as a kit with wire and Gripple Hanger
• Available in lengths from 1 m to 10 m
• Other lengths are available on request

Ideal for the suspension of services from SMD TR60 and TR80 composite floor decking.

• Designed for use with Structural Metal Decks TR60+ and TR80+
• Adjustable and removable, no need for drilling, specialist tools or skills
• Available for use with No. 2 and No. 3 hangers with up to 3:1 safety factor
• Supplied as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified

Specifically designed for fastening through roof cladding.

• Designed to fit 6 mm holes
• Suitable for every grade of steel
• Creates a secure hanger
• Safe working load may vary dependent on the thickness of the steel to which it is attached
• Available for use with No. 2 hanger only, with up to 5:1 safety factor
• Supplied as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified

Aesthetic fixing for use with any 6 mm or 8 mm threaded product.

• Available in M6 and M8 sizes
• Ideal for use on signage or where services are exposed, such as retail and office environments
• Available for use with No. 1, No. 2 and No. 3 hangers with up to 5:1 safety factor
• Supplied as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified

 Designed for architectural installations where aesthetics are important.

• Aesthetic fixing for use with a wide range of Gripple hangers
• Ideal when lighting/services are exposed
• Available up to 45 kg SWL with 5:1 safety factor
• Two part construction for fast installation using M6 or Ø4.5 mm c/sunk screws
• Supplied as a ready-to-use kit with wire and a Gripple hanger

 For fixing into lighting fixtures and lighting track or other channel profiles.

• Simple, fast installation that can be easily positioned within the channel or track
• Available for use with No. 1, No. 2 and No. 3 hangers
• Comes as a complete kit with wire rope and Gripple hanger

 For anchoring into concrete and cracked concrete

• Ideal for fixing into concrete and cracked concrete
• Shallow anchorage depth of 25 mm
• Available for use with No. 1 and No. 2 hangers with up to 3:1 safety factor
• Comes as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified

 For anchoring into concrete.

• Ideal for fixing Gripple hangers into concrete
• Knock into a pre-drilled hole, pull with a claw hammer to set
• Available in sizes No. 1 and No. 2 with up to a 3:1 safety factor
• Comes as a ready-to-use kit with Gripple wire rope and hanger
• Available in lengths of 1 m - 10 m (other lengths available upon request)
• Independently certified

 For attaching directly to existing clips, cable tray, cable basket, brackets and light fittings.

• Provides 9 mm clearance
• Available for use with No. 1, No. 2 and No. 3 hangers with up to 5:1 safety factor
• Comes as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified
• Available in Stainless Steel

 For quick and secure connection to the Gripple catenary system.

• Allows horizontal and vertical adjustment via a Gripple hanger
• Cams lock solidly in place even at angles up to 60º from horizontal
• Can be fitted retrospectively
• Available in 3 mm and 6 mm versions with up to 5:1 safety factor
• Comes as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified

Designed for use with SMD R51, Comflor 51, Holorib, Multideck 50 and Metfloor 55

• Available in 18 mm and 25 mm sizes
• 25 mm version designed for use with SMD R51, Comflor 51, Holorib, Multideck 50 and Metfloor 55
• 18 mm version designed for use with Ribdeck S60 and Ribdeck 80
• Available for use with No. 2 and No. 3 hangers with up to 5:1 safety factor
• Comes as a ready-to-use kit with wire rope and Gripple hanger
• Available in lengths from 1 m to 10 m (other lengths available upon request)
• Independently certified
